Goods Description

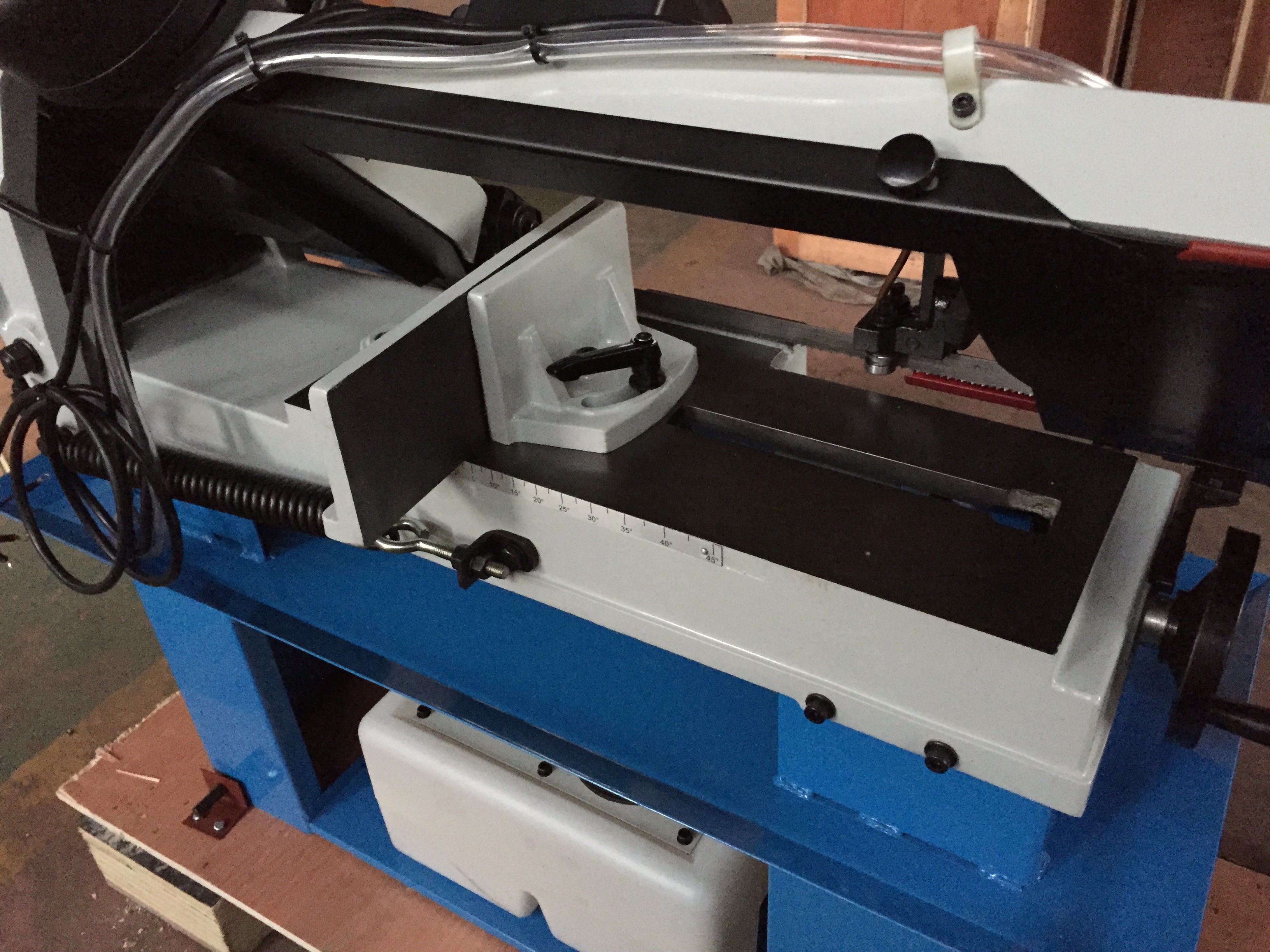

1.The band saw features Quick adjusting vise for angular cuts.
2.Coolant pump ensures longer service life of saw blade.
3.Band sawing machine with electro-mechanical blade tension .
4.V-belt and Gear driven for optional .
5.Quick clamps rotated from 0-45.
Features
1.Band sawing machine with maximum processing capability of BAND SAW BS-712N is 7"(178mm)
2. The belt gear of it has four cutting speeds
3. The quick clamps can be rotated from 0° to 45°4. Can be used both vertically and horizontally
4. High-capacity due to controlled by motor

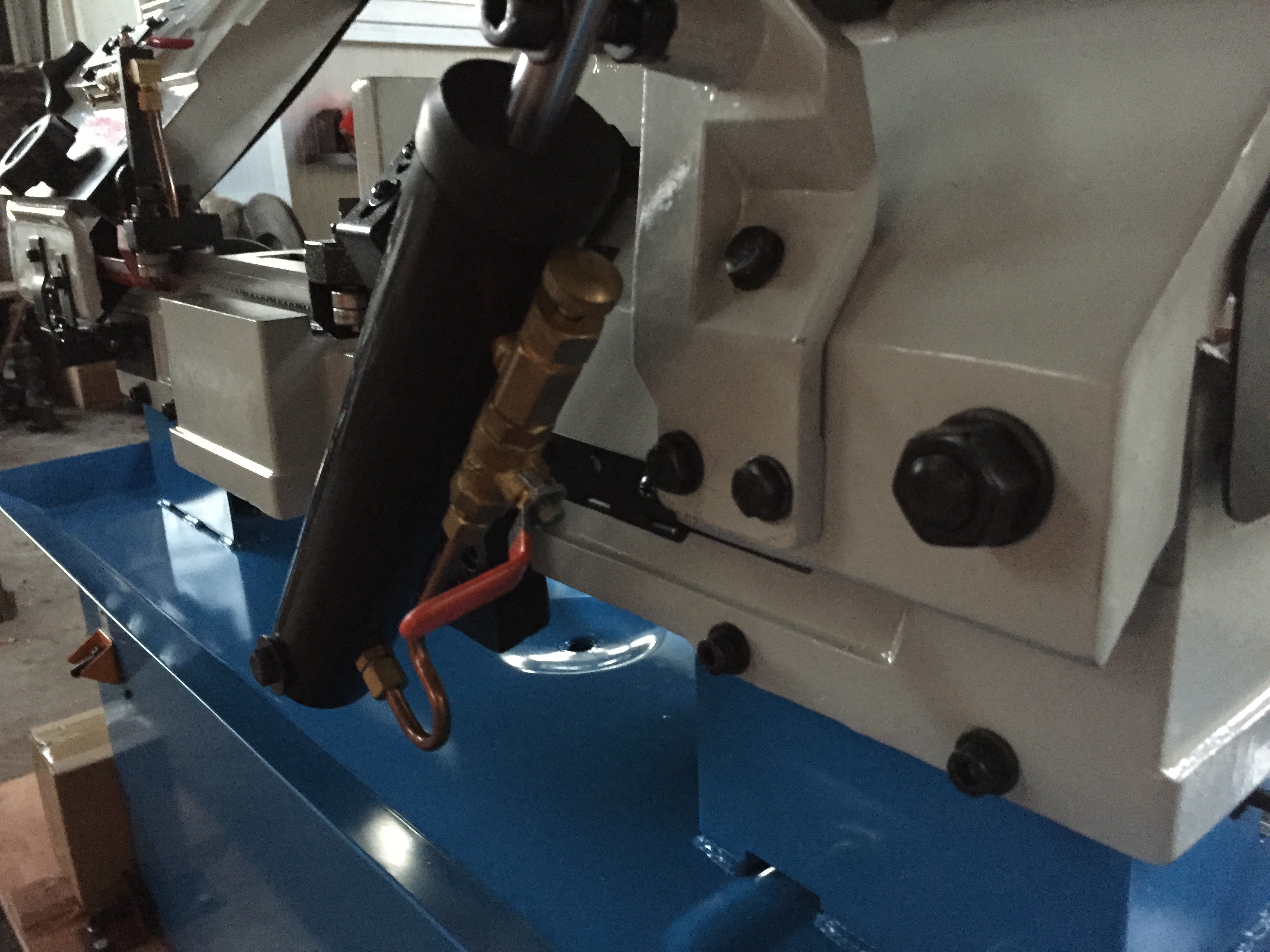

5. The falling speed of saw bow is controlled by hydraulic cylinder. The base of the roller can be move freely.
6. Has a sizing device (the machine will automatically stop after sawing materials)
7. With power break protection device, machine will power off automatically when the rear protective cover is opened
8. With cooling system, can prolong the service life of saw blade and improve the precision of work piece
9. Is equipped with a block feeder (with fixed sawing length)
Technical parameters
| Model | BS-712N |
| Capacity | Circular @90° | 178mm (7") |
| Rectangular @90° | 178x305mm (7"x12") |
| Circular @60° | - |
| Rectangular @60° | - |
| Circular @45°(Left & Right) | 127mm (5") |
| Rectangular @45°(Left & Right) | 120x125mm (4.75"x4.88") |
| Blade speed | @50Hz | 22,34,49,64MPM |
| @60Hz | 27,41,59,78MPM |
| Blade size | 20x0.9x2362mm |
| Motor power | 750W, 1HP(3PH),1.1kW 1.5hp(1PH) |
| Drive | V-BELT |
| Packing size | 125x45x115cm |
| N.W/G.W. | 145/178KG |
Product Details
Packing & Shipping
FAQ
What is your minimum order ?
Answer: 1 Set.
1. Payment Terms
T/T, L/C at sight are acceptable by us.
2. Price Terms
It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.
3. Delivery Time
15-30 Days from our accountant confirm your deposit payment.
4. Shipment Condition
We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.
The balance should be paid up before loading machines.
5. Warranty
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
Contact Us
QUALITY AND SERVICE ARE OUR LIFE
Contact person : Jallian (Sales Manager)
Email:jallian(at)techmarinesupply.com
Mobile:+86-13372136268
Skype:Jallian Gao8023
Whatsapp:+8613372136268
Wechat:13372136268
|
|

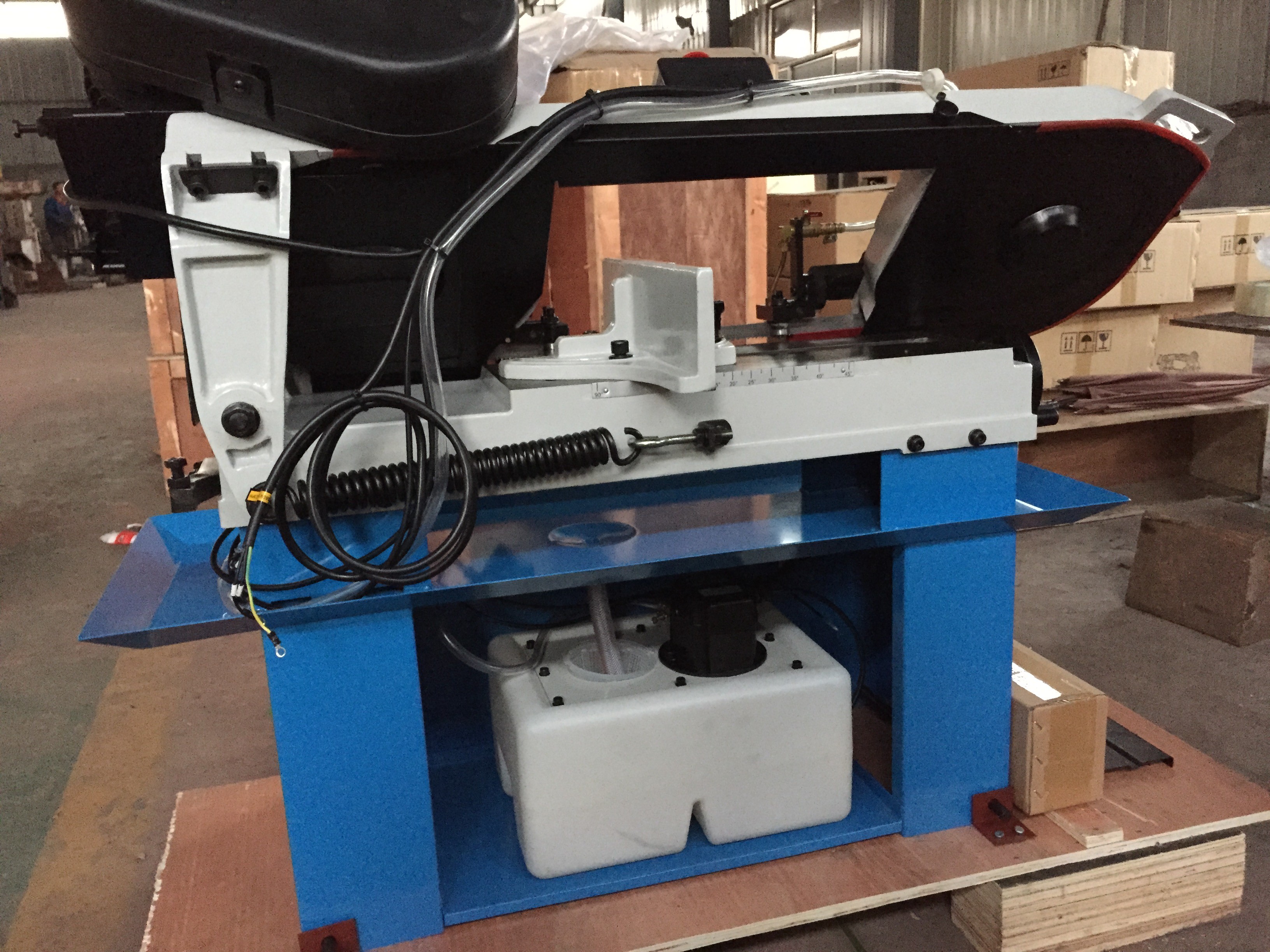

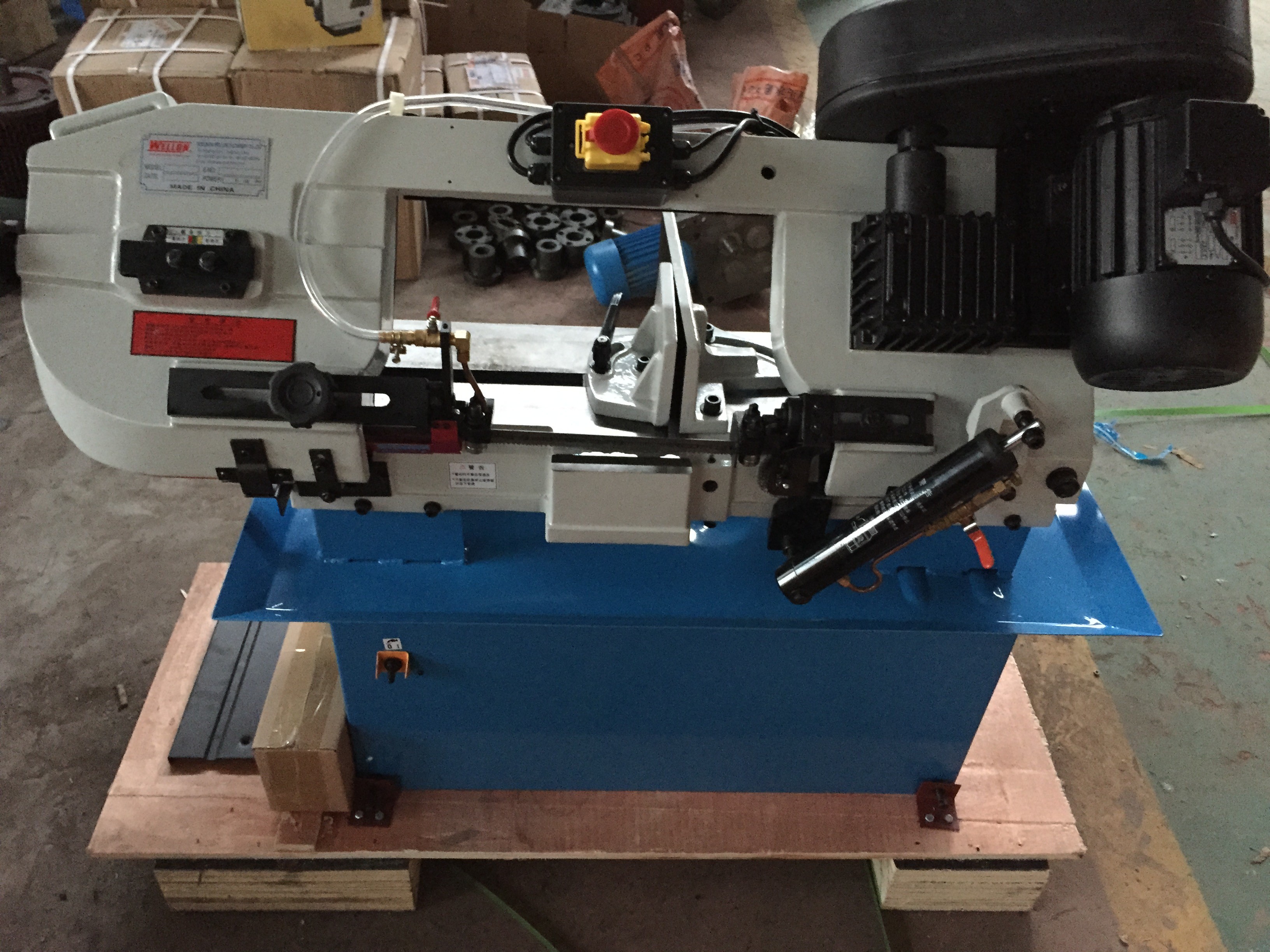

Angle cutting BS-712N small sawing machine Horizontal metal band saw machine factory direct selling Images
|
