Specifications
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Features
1. Electric coolant system.
2. Accident preventing devices on the fly wheel casing and on the blade.
3. Vertical rotation on bolt with adjustable tapered bearings without backlash.
4. Band stretching is obtained by electro-mechanical blade tensioner with micro-switch.
5. Swivel on both sides.
6. Double speed selection.
7. It is characterized by manual operation mode.
8. The saw bow can rotate around.
9.Has power break device (the machine will automatically power off when the rear protective cover is opened).
10. The falling speed of saw bow is controlled by hydraulic cylinder.
11. It is equipped with a block feeder (with fixed saw length).
12. Has sizing device (the machine will automatically stop after sawing the materials).
13. The hydraulic system automatically controls the up and down of saw bow and the tightness and looseness of the jaw.
14. The cooling system can prolong the service life of saw blade and improve the precision of the workpiece.
15. Has an optional PLC system.
16. Hydraulic cylinder for controlled descent
Technical parameters

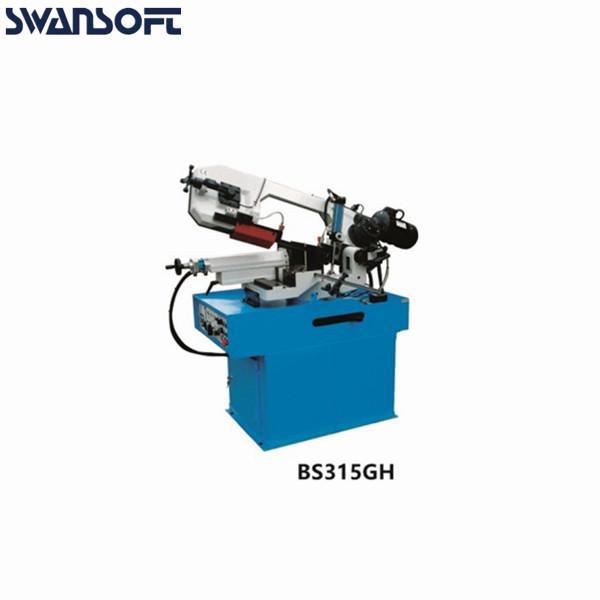

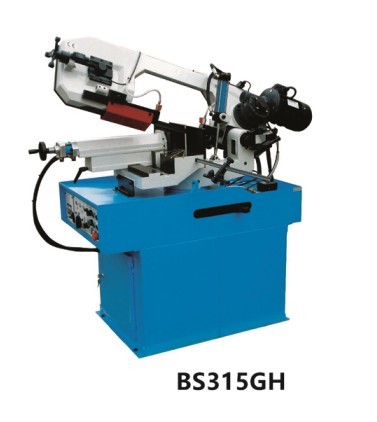

| Model | BS-315GH |
| Capacity | Circular @90° | 230mm |
| Rectangular @90° | 315x170mm |
| Circular @60° | 130mm |
| Rectangular @60° | 130x105mm |
| Circular @45°(Left & Right) | 210mm |
| Rectangular @45°(Left & Right) | 210x170mm |
| Blade speed | @50Hz | 40/80MPM |
| @60Hz | 48/96MPM |
| Blade size | 27x0.9x2825mm |
| Motor power | 0.75/1.1kW |
| Drive | Gear |
| Packing size | 163x90x155mm |
| N.W/G.W. | 380/420kg |

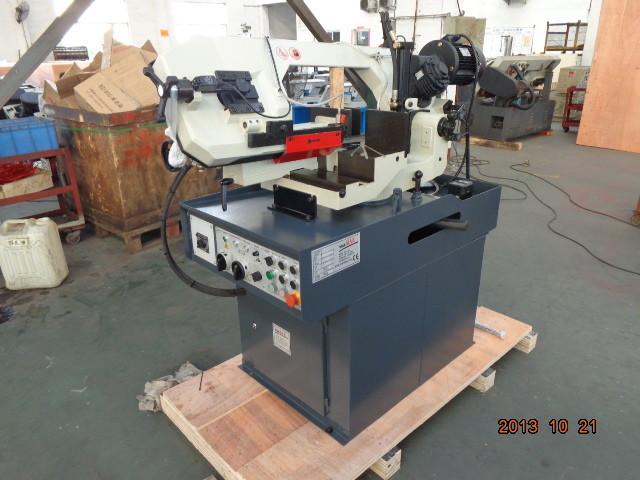

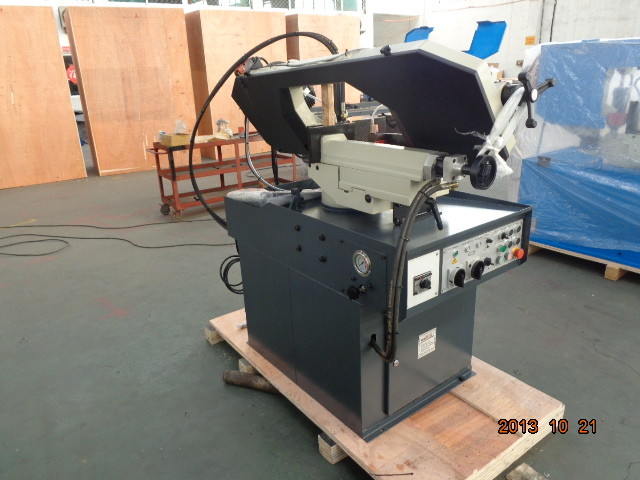

Product Details
Packing & Shipping
FAQ
What is your minimum order ?
Answer: 1 Set.
1. Payment Terms
T/T, L/C at sight are acceptable by us.
2. Price Terms
It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.
3. Delivery Time
15-30 Days from our accountant confirm your deposit payment.
4. Shipment Condition
We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.
The balance should be paid up before loading machines.
5. Warranty
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
