Specifications
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Features
1. The maximum processing capacity is 10",
2. Belt drive has fourth gear sawing speed;
3. 1018R saw bow can be rotated 0 ~45 degrees cutting ,1018B mouth of tongs can be rotated 0 ~45 degrees cutting;
4. The fast pliers,
5. The fall speed of the saw bow is controlled by the hydraulic cylinder;
6. With stop device (After the machine sawing and cutting will automatically stop );
7. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
8. The cooling system can prolong the service life of the saw blade,
9. Can improve the accuracy of the work piece; block device (fixed sawing length);
Technical parameters

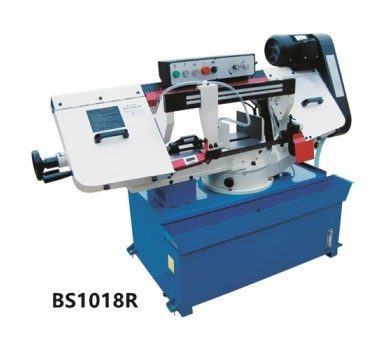

| Model | BS-1018R |
| Capacity | Circular @90° | 254mm(10'') |
| Rectangular @90° | 160x406mm(6.3"x16") |
| Circular @60° | - |
| Rectangular @60° | - |
| Circular @45°(Left & Right) | 170mm(6.7") |
| Rectangular @45°(Left & Right) | 160x190mm(6.3"x7.5") |
| Blade speed | @50Hz | 26,50,73,95MPM |
| @60Hz | 35,60,88,115MPM |
| Blade size | 27x0.9x3215mm |
| Motor power | 1.5kW 2HP (3PH) |
| Drive | V-belt |
| Packing size | 180x77x115mm |
| N.W/G.W. | 300/360kg |
Product Details
Packing & Shipping
FAQ
What is your minimum order ?
Answer: 1 Set.
1. Payment Terms
T/T, L/C at sight are acceptable by us.
2. Price Terms
It is up to your requirement. EX-WORS, FOB, CIF, CFR and so on are acceptable by us.
3. Delivery Time
15-30 Days from our accountant confirm your deposit payment.
4. Shipment Condition
We will arrange the machine production from our accountant confirm your deposit payment. The deposit is 30% of the contract.
The balance should be paid up before loading machines.
5. Warranty
1 year quality guaranty for the main spare parts, not include quick-wears parts, like blade, punch, die and so on. If the parts of machines have problems, which are caused by its own quality, we will provide the accessories for free.
Contact Us
QUALITY AND SERVICE ARE OUR LIFE
Contact person : Jallian (Sales Manager)
Email:jallian(at)techmarinesupply.com
Mobile:+86-13372136268
Skype:Jallian Gao8023
Whatsapp:+8613372136268
Wechat:13372136268
|
|

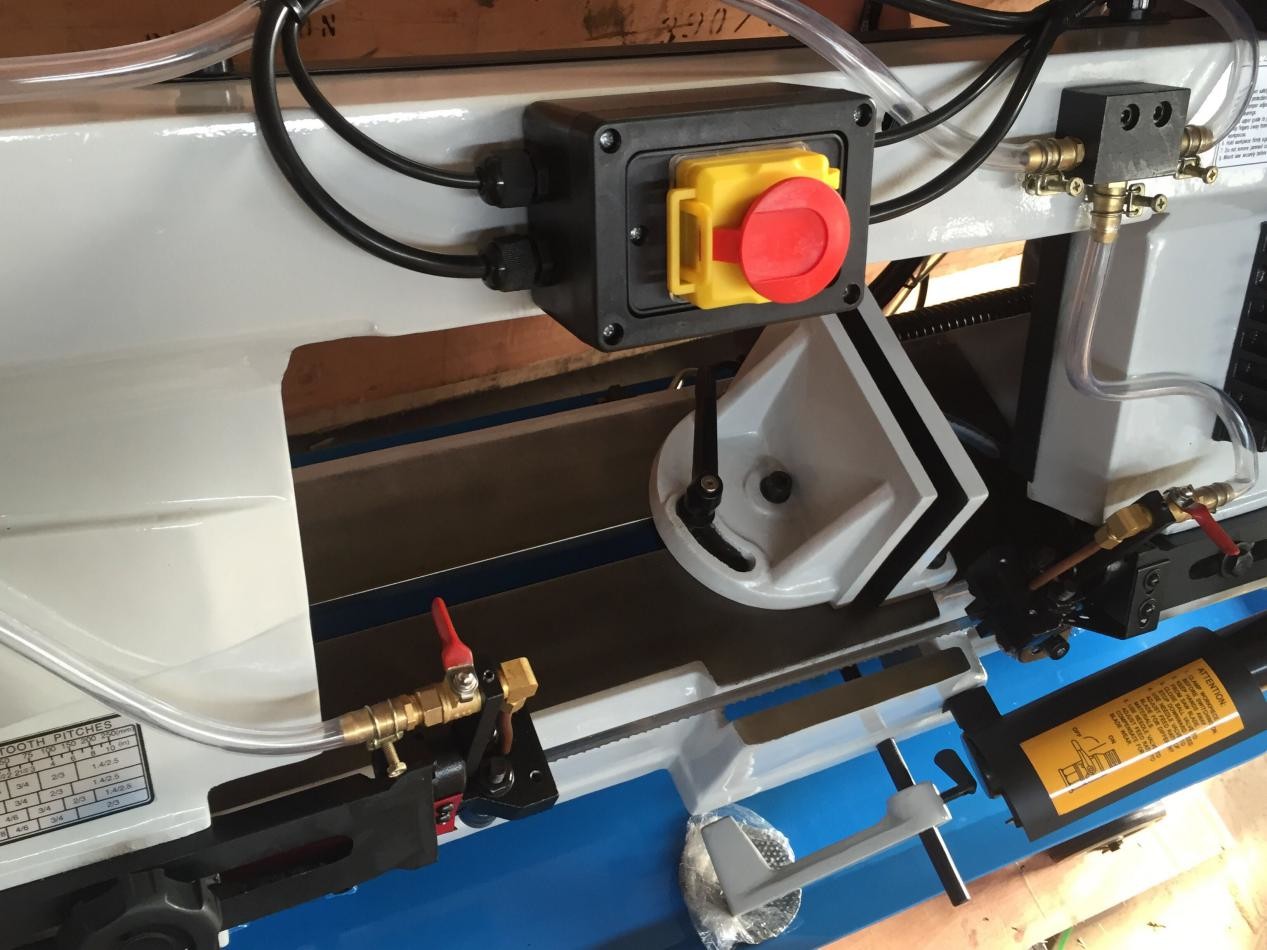

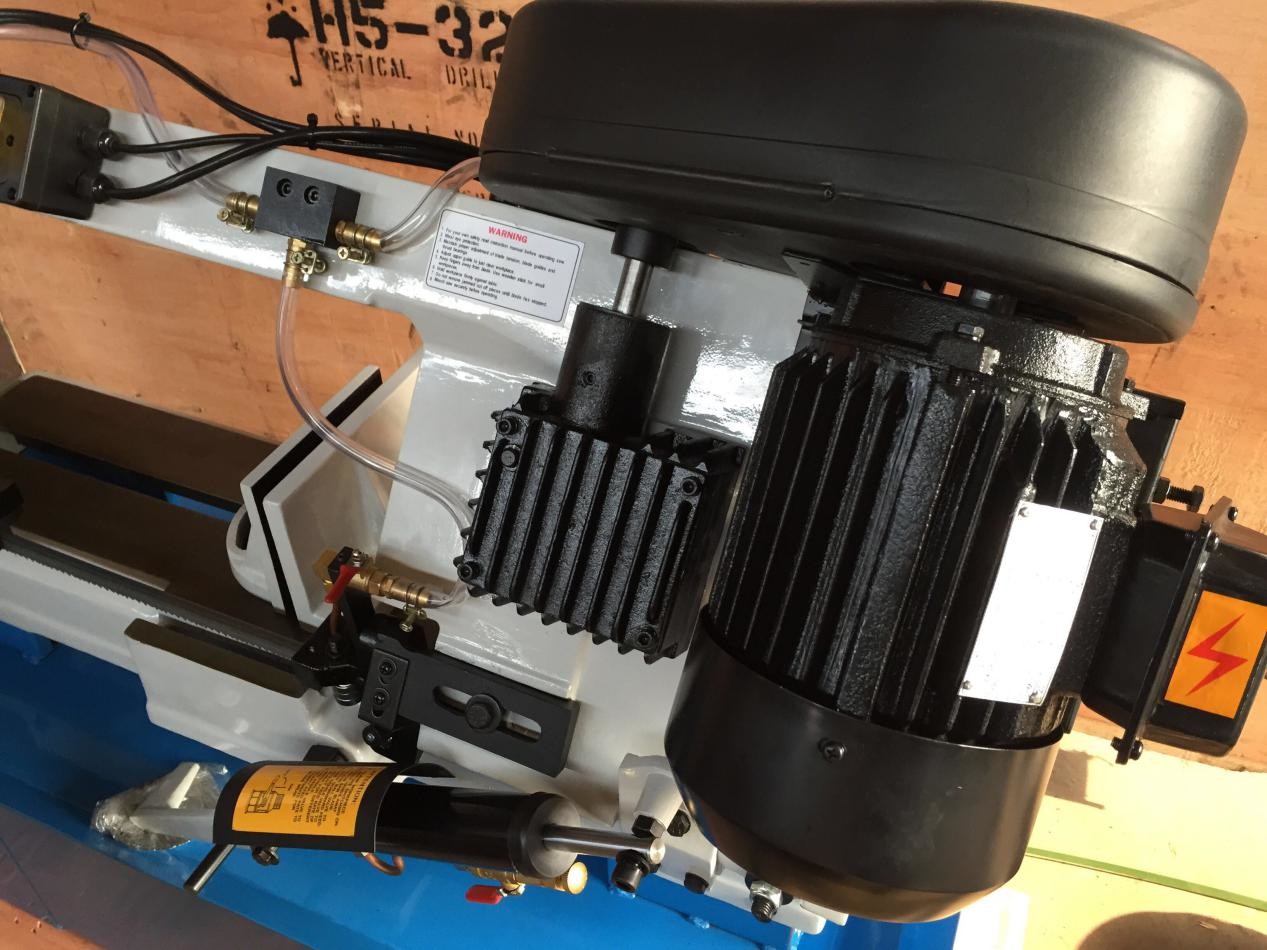

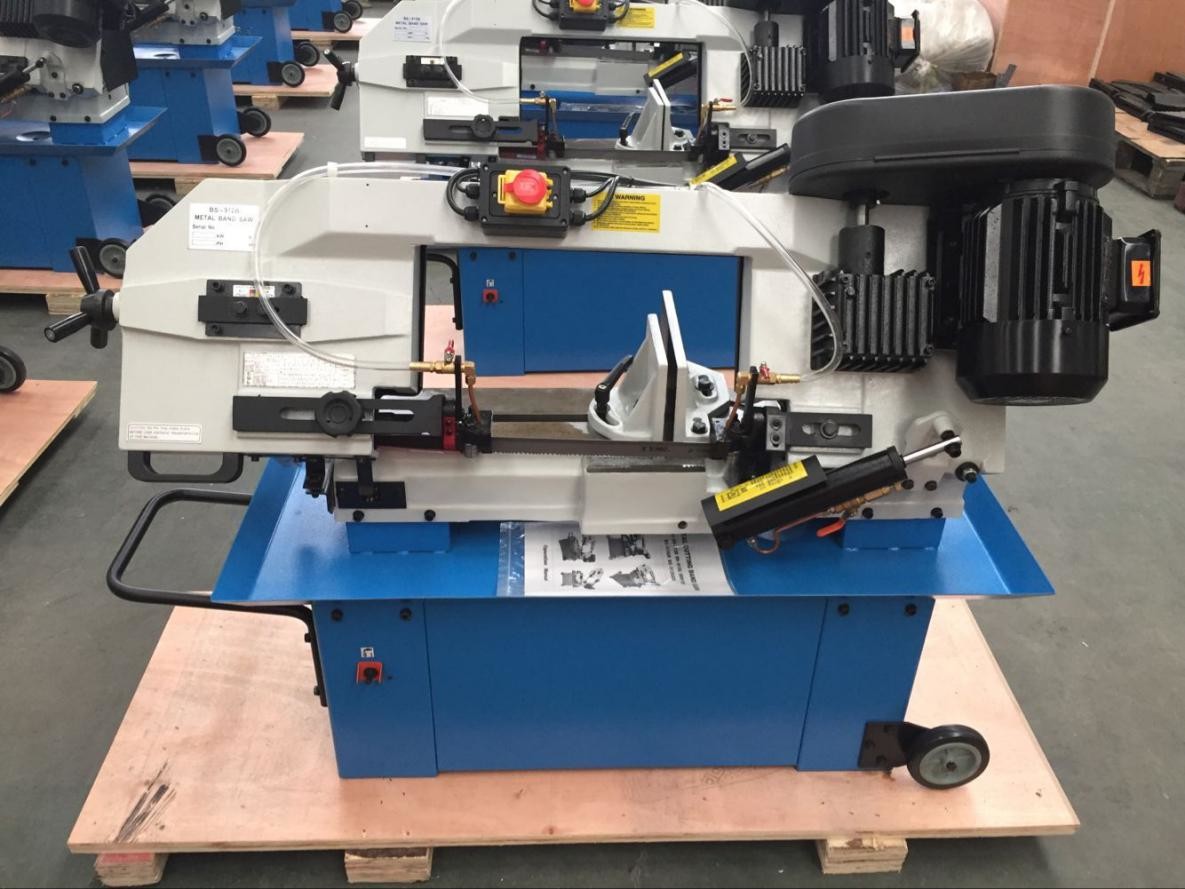

BS-1018R Swansoft 10" Hydraulic Horizontal Metal Cutting Band Saw Machine Images
|
